netgraph mainmenu





Active Tray Icon

Disable: The tray icon is set to default and doesn’t change

Download: The tray icon shows a value from 1 to 9 on a blue background according to download data traffic

Upload: The tray icon shows a value from 1 to 9 on a red background according to upload data traffic



Total: The tray icon shows a value from 1 to 9 on a green background according to the sum of download and upload data traffic

Auto: The tray icon shows a value from 1 to 9 on a blue or red background according to download or upload data traffic. When download is higher, the icon is blue; when upload is higher, the icon is red.

tray icon download

tray icon upload

tray icon total

tray icon activity

Network Activity: The tray icon indicates network activity by changing between red and blue

The following values apply to the above:

  • Below 5Kbyte/sec: default icon
  • 5-10Kbyte/sec: 1
  • 10-20Kbyte/sec: 2
  • 20-50Kbyte/sec: 3
  • 50-100Kbyte/sec: 4
  • 100-200Kbyte/sec: 5
  • 200-500Kbyte/sec: 6
  • 0.5-1Mbyte/sec: 7
  • 1-2Mbyte/sec: 8
  • Above 2Mbyte/sec: 9



menu active tray icon





Mode

Graph and Speed: Data traffic is displayed in a resizable window. Download values are blue, and upload values are red. The higher value is displayed in its own color, while the lower value is displayed in green and remains hidden. On the top of the graph, three numeric values are displayed:

  • the first: the graph’s current max. value
  • the second: current download speed
  • the third: current upload speed

mode graph

Graph Only: A display mode similar to the one above; numeric values are not displayed

Speed: Two numeric values are displayed; the first one is the download, and the second one is the upload speed

mode two

Bar and Speed: The blue progress indicator shows a state corresponding to the download speed, while the red one shows a state corresponding to the upload speed. The numeric value shows the sum of the download and upload speed

Total Speed: The numeric value shows the sum of the download and upload speed

mode one

Progress Bar: The blue progress indicator shows a state corresponding to the download speed, while the red one shows a state corresponding to the upload speed.

Minimal Vertical, Minimal Horizontal: A process indicator which displays the state corresponding to the sum of the download and upload speed.

mode minimal

Minimal Graph: A display mode similar to Graph Only mode. The window is small and not resizable



menu mode

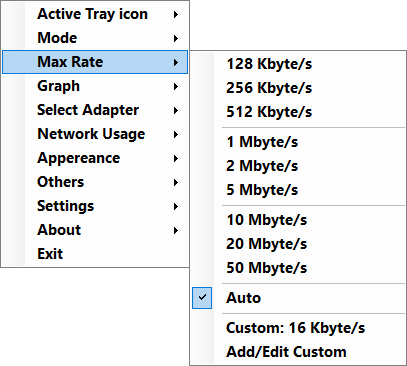

Max Rate

The selectable limit values of the graph’s and process indicator’s display. It sets the Auto limit value to the maximum of currently displayed data. Custom limit values can be set up and selected too. The program rounds the given values to enable an efficient visual display.



menu max rate





Graph

Graph menu is only available in case of graph type display.

Reset Graph: Deletes the displayed values and resets the graph

Graph Interval: The graph’s sampling time can be given here

Graph Average Level: The graph’s input averaging level. The values measured by the program first go into a buffer, then after preprocessing they get into the display unit. The displayed data is equivalent to the average of the number of units corresponding to the set value.

average level

  • in case of one, there is no averaging
  • in case of two, the average of the last two measured data is displayed
  • in case of three, the average of the last three measured data is displayed…

Speed Panel Transparent: The display mode of the numeric values displayed on the graph



menu graph





Select Adapter

Only available, if the computer has more than one network cards. When selecting all cards, the download and upload data measured by cards are added up and then summed values are displayed. After adding a new network device, it is worth restarting NetGraph to ensure proper functioning.



menu select adapter





Appearance

Display related settings. Only those functions are available which can be used in the given display mode.



menu appereance





Others

Ping: Pings six preset and one user-definable URL.

Network Info: Displays the most important data by network cards

Autostart: When activated, the program starts automatically at operating system boot time. Autostart works independently of the program’s other settings; saving settings and loading default settings do not apply to it.



menu others





Settings

Save: The program saves current settings and will function according to these after next startup.

Default: The program will function according to default settings after next startup.

These two functions don’t apply to the settings of Autostart.



menu settings





Version: 1.5.6.64 | Date: 2017-11-20 | Download | MD5: 84b093be18fd83382d9e876848d8c0a0
